Power Distribution Board
Power Distribution Board
₹150.00₹141.60
Features
Material: glass fiber
Compatible with MK KK flight control installment pitch of holes
Compatible with MK KK flight control system
Can connect 1-8 ESC.
Board Dimensions : 50 x 50 x 2 mm.
Weight: 8 gm.
Hole Spacing: 45mm Square and 35mm Square (Compatible with KK 45mm spacing)

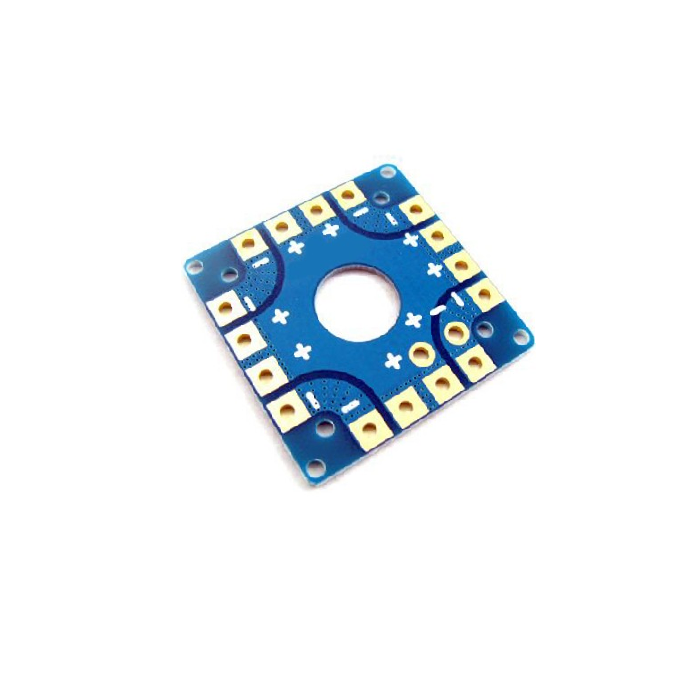

The 100A Multirotor ESC Power Distribution Battery Board For Quadcopter is a lightweight distribution board which will power your multi-rotor aircraft easily.Simply solder a battery connection onto the two central terminals, and you’ve got eight pairs of connections to use – perfect for quadcopters, hexacopters, and even octocopters.
These boards are great for smaller multirotor builds. They’re compact and lightweight and offer large solder pads – making them easy to work with. These boards can handle some serious current – up to 20A per output for a quadcopter build or drop that down to 10A each for an octocopter.
